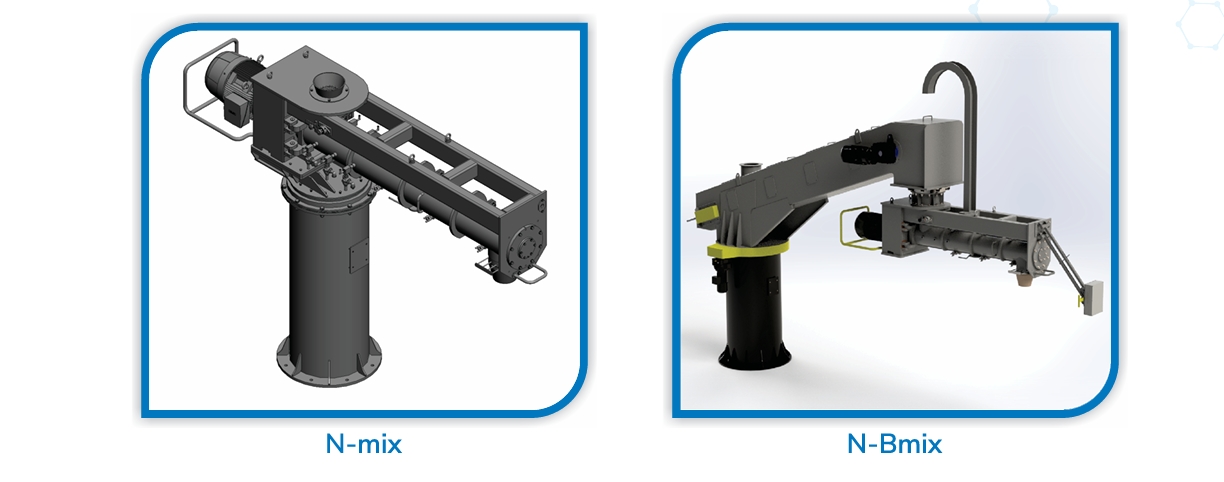

Sand mixer is high speed action to blending sand and two or more chemical binders (resin & catalyst) for making versatile, precise and stable mould in No Bake Sand Foundry with getting better efficiency in consumption of binders. The sand is processed in this high-speed mixer with advance control system and pump station. We are supplying N mix and N Bmix model in sand mixing requirement.
- Roughed Design chrome coating trough cover and mixer housing with heavy duty pedestal equipped with slewing bearing
- Main shaft equipped with wear resistant blade
- Main Motor Equipped with mixing shaft through coupling
- Mixer equipped with belt conveyor for huge mould.
- High speed mixing
- Low consumption of chemical binders
- Easy maintenance and operation
- Range from 1 tph to 20 tph in N mix and 10 tph to 60 tph in N Bmix model mixer.
Sand Reclamation Unit

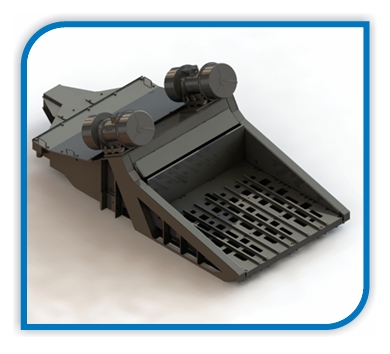

We are dealing in mechanical and thermal reclamation system to reuse sand as reclaimed sand to add with new sand for making new mould. Presently working on mechanical sand reclamation with N LR, N LCR and N HR attrition unit with range from 1 tph to 25 tph capacity. All these models are roughed design with heavy structural body and equipped with high efficiency vibrating motor and rest on spring. Apart from we are supplying vibrating elevator to reduce civil work and improvement in cooling of hot reclaimed sand for keep in storage bunker and getting high quality mixing sand.
- Roughed design with membrane heavy-duty body structure
- QUARD 400 high wear resistant material deck plate with wedge wire screen
- Equipped with high efficiency vibrating motor
- Easily accessible with low maintenance
- N LR attrition unit comes with range of 3 tph to 12 tph

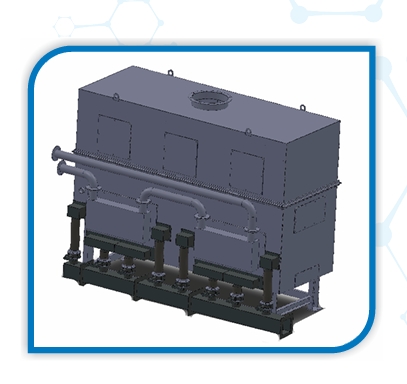

- Cooler classifier unit comes with efficient heat exchanger for cooling sand and classify dust from sand through forced draught blower fan system for maintaining LOSS OF IGNITION.
- Cooler CLASSIFIER UNIT OFFER FROM 3 TPH TO 25 TPH
- Sand sample door and vibrating fork to indicate sand amount
- Fluidised bed equipped with air flow manifold & centrifugal fan system
- Pneumatic transporter range from 3 TPH TO 25 TPH
- Dense phase pneumatic conveying for new and reclaimed sand from one point to destination point
- Offer line booster for sand conveying for long-distance destinations
